CARBON DIOXIDE GENERATION / RECOVERY / PURIFICATION / LIQUEFACTION / STORAGE / BOTTLING SYSTEM

Carbon dioxide (chemical formula CO2) is a chemical compound composed of two oxygen atoms covalently bonded to a single carbon atom. It is a gas at standard temperature and pressure and a colorless, odorless, tasteless gas that is about one and one-half times as dense as air under ordinary conditions of temperature and pressure.


Carbon dioxide has varied commercial uses.

Calorie HNT Private Limited

Calorie HNT Private Limited Beverages
Calorie HNT Private Limited Foods
Calorie HNT Private Limited Pneumatic systems
Calorie HNT Private Limited Fire extinguisher
Calorie HNT Private Limited Welding
Calorie HNT Private Limited Pharmaceutical and other chemical processing
Calorie HNT Private Limited Agricultural and biological applications
Calorie HNT Private Limited Lasers
Calorie HNT Private Limited Oil recovery
Calorie HNT Private Limited As refrigerants
Calorie HNT Private Limited Coal bed methane recovery
Calorie HNT Private Limited Wine making
Calorie HNT Private Limited See water desalination
Calorie HNT Private Limited PH control


There are three principal commercial sources for carbon dioxide. High-purity carbon dioxide is produced from some wells. The gas is obtained as a byproduct of chemical manufacture, as in the fermentation of grain to make alcohol and the burning of limestone to make lime. It is also manufactured directly by burning carbonaceous fuels. For commercial use it is available as a liquid under high pressure in steel cylinders, as a low temperature liquid at lower pressures, and as the solid dry ice.


We design, manufacture, supply and commission CO2 generation, recovery, purification plants on turnkey basis.

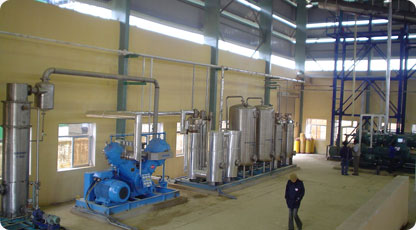

Carbon Dioxide Generation Plant


Carbon dioxide is generated by combustion of fossil fuel such as gas, light diesel oil or kerosene. CO2 thus produced as a flue gas is separated by mean of monoethanol-amine solution (MEA). It is further purified, dried and liquefied to get the desired purity and finally stored in a storage vessel. Theses plants are modular in design to ease its installation. It is supplied with all related equipments and accessories to suite for individual customer for their captive consumption of for gas selling merchants for tanker and cylinder filling station on turnkey basis. The capacity of these plants ranges from 50 to 1000 kgs/hr and the purity from technical grade to food grade.



Calorie HNT Private Limited

Carbon Dioxide Recovery Plant


The Gas is recovered from any existing sources like,


Calorie HNT Private Limited Recovery from flue gases
Calorie HNT Private Limited Recovery from Chemical Process
Calorie HNT Private Limited Recovery from Natural sources
Calorie HNT Private Limited Recovery from Brewery/distillery Fermentation
Calorie HNT Private Limited Recovery from waste gas of dry ice machines
Calorie HNT Private Limited Recovery from Bio-ethanol plant.


The recovered gas is again purified, dried and liquefied to get the desired purity. These type of plant are again modular and the capacity range from 50 to 2000 kgs/hr.. In these plants , the purification systems are different for each of the above mentioned sources because the impurities are different from each source of recovery. These plants are also for custom designed to suit for every individual customer or gas merchants Gas recovered and purified can either be used is gaseous or liquid form .

Calorie HNT Private Limited

CO2 production / Recovery plant's salient features


Calorie HNT Private Limited Easy Operation and maintenance
Calorie HNT Private Limited Compact in design
Calorie HNT Private Limited Highest quality of manufacturing
Calorie HNT Private Limited Modern and reliable equipments
Calorie HNT Private Limited Plant design to meet highest international standards
Calorie HNT Private Limited Low production costs and high purity of final product

Other Related Equipments/Accessories

Calorie HNT Private Limited CO2-storage tanks,
Calorie HNT Private Limited CO2-evaporators
Calorie HNT Private Limited CO2-supply systems
Calorie HNT Private Limited Refrigeration systems.
Calorie HNT Private Limited Tanker and Cylinder filling systems.
Calorie HNT Private Limited Gas analyzers and quality control equipment
Calorie HNT Private Limited Dry ice production machines
Calorie HNT Private Limited And much more...
